Analoge Funkmodule

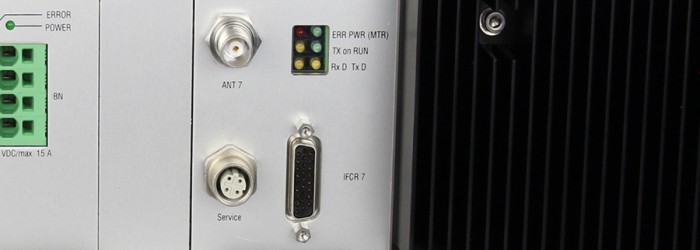

The ARM 26 is an analogue radio module for the Cab Radio MESA 26. It allows the operational communication in analogue radio systems in the frequency bands:

  • 70 cm (according to UIC 751-3) and
  • 2 m

The unit is modular and thus the respective customer requirements configurable. It consists of three functional units:

  • Power supply for the connection of the on-board voltage and the generation of the device’s internal operating voltage
  • 2 m radio module
  • 70 m radio module

The analog radio is available for different voltage variants and the following specifications:

  • ARM 26-xxx/2 for use in 2 m band
  • ARM 26-xxx/7 for use in 70 cm band
  • ARM 26-xxx/2/7 for use in both frequency bands

(xxx = Voltage input 24 V, 36 V, 48 V, 72 V or 110 V)
MMI

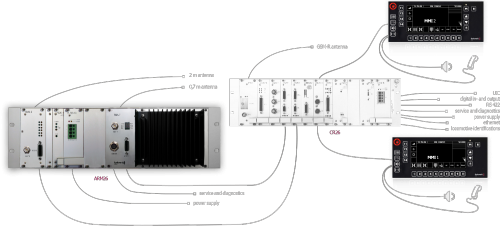

ARM_EN
RMA2                                            RMA7
HF-Data 2 m band 70 cm band
RMA2 RMA7
Modulation type FM oder PM (6 dB / Oktave) FM
Channel spacing 12,5 kHz or 25 kHz 25 kHz
Transmitter
Frequency range 140,000 MHz … 174,000 MHz 456,95 MHz … 458,65 MHz
HF power output (1 … 25) W 5 level 0,5 /2 /6 /8/ 10 W (SW controlled)
Reciever
Frequency range 140,000 MHz … 174,000 MHz Duplex- / Scan receiver:
466,95 … 468,65 MHz
Simplex receiver:
456,95 … 458,65 MHz
Responsivity min -107 dBm 20 dB SINAD
at 1 KHz (± 3 kHz Hub)
with CCITT filter
 -107 dBm (12 dB SINAD, CCITTFilter)
