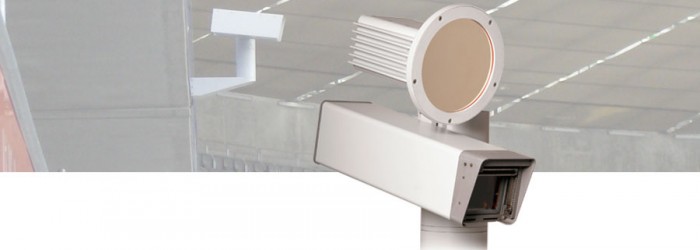

Pan/tilt head Platon

Thanks to its innovative technology, the high-performance pan/tilt head Platon by Funkwerk offers a number of possibilities for dynamic applications allowing perfect adjustment to individual location factors.

Speed and speed flexibility are among Platon‘s outstanding properties. With an extremely flexible pan speed of 0.01 up to 200°/s and a dynamic range of 1:20 000 together with the 128 stage Speed adjustment, the Platon can still be controlled at extreme speeds with unsurpassed precision.

The Platon can be equipped with an optional patented screen washer and wiper system. The screen wiper cleans the entire screen surface and the integrated cobweb remover eliminates dirt build-up in front of the Screen.

The pan/tilt head PLATON is especially developed for:

  • highways and streets
  • extensive areas and industry facilities
  • airports and coastal areas
  • mountain areas, to create high-resolution panorama pictures

Highlights

  • 360° high-end pan/tilt system with rotation speeds from 0.01 °/s up to 200°/s

  • highest precision of < ± 0.05° through zero-clearance drive

  • panorama tour

  • freely definable privacy zones

  • wiper/washer and cobweb remover available

  • available in stainless steel

  • application of white light or IR spots with variable light cones possible (VARISpot), up to 500m range

  • controlled heating

  • zoom-dependent pan/tilt rotation speeds

  • double-walled housing for temperature isolation

  • configurable soft tours

Technical specifications

General Data
Speed [°/s]
Pan0.01 – 200
Rotation angle
Pan 360° unlimited
Tilt± 90° with flip function
Positioning
Positioning accuracy typ. ± 0,01° / max. ± 0,05°
Fixed positions 256 (pan-, tilt-, zoom- and focus positions)
Special features
panorama-tour, configurable soft tours, controlled heating, zoom-dependent pan/tilt rotation speeds, double-walled housing for temperature isolation
Protection category
 IP 66
Temperature range
-30°C up to +60°C
Weight
approx. 19 kg

further technical details are on the data sheet

Advantages and Benefits

Dynamic properties

Speed and speed flexibility are among Platon‘s outstanding properties. With an extremely flexible pan speed of 0.01 up to 200°/s and a dynamic range of 1:20 000 together with the 128 stage speed adjustment, the Platon can still be controlled at extreme speeds with unsurpassed precision


Screen cleaning options

Dirt build-up through snow, rain, water splashes and last but not least spiders is inevitable in case of outdoor installation. In order to guarantee optimum vision at all times, the Platon can be equipped with an optional patented screen washer and wiper system. The screen wiper cleans the entire screen surface and the integrated cobweb remover eliminates dirt build-up in front of the screen.
